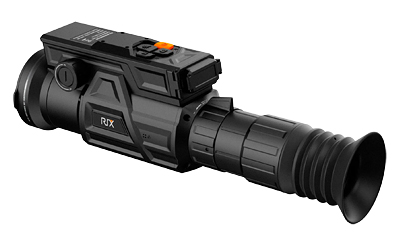

Rix Optics DBH-D6 Thermal Scope 60mm 640×512

The Rix Optics DBH-D6 is a compact thermal imaging scope built around a 60 mm objective and a 640×512 VOx uncooled sensor. It combines onboard Wi‑Fi, a circular high-resolution OLED display, and an integrated 905 nm laser rangefinder for distance measurement. The package includes a Picatinny mount and a range of accessories for field use.

Key Specifications

• The manufacturer is Rix Optics.
• The model designation is DBH-D6.
• The objective lens measures 60 mm.
• The thermal sensor resolution is 640 × 512 pixels.
• The sensor pixel pitch is 12 μm.
• The sensor frame rate is 60 Hz.
• The internal display provides a 2560 × 2560 circular OLED image.
• The optical zoom specification is 3× with a separate digital zoom function stepped to 1–6×.
• The built-in laser rangefinder operates at 905 nm with a stated maximum range of 1200 yd.
• The unit carries an IP67 ingress protection rating.

The DBH-D6 brings a mix of high-resolution thermal imaging, an ultra‑high‑definition OLED view, and rangefinding capability into a single optic suited for observation and low-light field tasks. Its combination of a 60 mm germanium objective and a 640×512 VOx sensor produces clear thermal imagery, while Wi‑Fi, onboard recording, and USB‑C power add modern convenience for extended outings.
