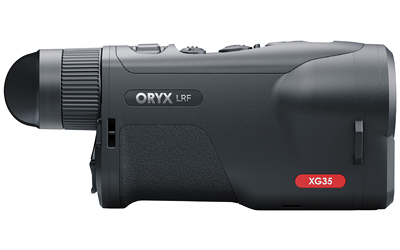

Pulsar Oryx LRF XG35 Thermal Monocular 35mm 640×480

The Pulsar Oryx LRF XG35 is a handheld thermal monocular designed for extended field use. It features a 640×480 thermal sensor with a 12 µm pixel pitch and a 50 Hz refresh rate for stable, detailed imaging. The monocular uses a 35 mm objective and an AMOLED HD display with a 1024×768 output for clear on-device viewing. Power is provided by a removable APS5 Li‑ion battery pack (listed capacity 4900 mAh) and the device supports USB Type‑C external power delivery. A rugged magnesium alloy housing and IP67 protection make the unit suitable for harsh environmental conditions.

Key Specifications

• The sensor resolution is 640×480 pixels.
• The pixel pitch is 12 µm.
• The frame rate operates at 50 Hz.
• The objective lens is 35 mm (F35/1.0).
• The display is an AMOLED HD 1024×768 panel.
• The removable battery is an APS5 Li‑ion pack with a listed capacity of 4900 mAh.
• The chassis is constructed from magnesium alloy.
• The unit carries an IP67 degree of protection.
• The operating temperature range is -25°C to +40°C.
• The weight is 17.64 oz (approximately 0.5 kg).

With durable construction, on-board recording and Stream Vision 2 app compatibility, the Oryx LRF XG35 is configured for long observation sessions and documented field work. Its combination of a high-resolution thermal sensor, robust housing and removable APS5 power pack makes it a practical tool for users who need reliable, long-duration thermal imaging and digital recording in challenging environments.
