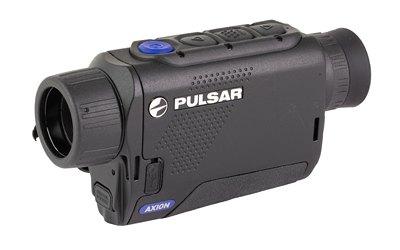

Pulsar Axion XQ30 Pro Thermal Monocular 2-8x 384×288

The Pulsar Axion XQ30 Pro is a compact thermal monocular built around a 384×288 uncooled sensor with a 17 µm pixel pitch and a 50 Hz frame rate. The optic offers a 2–8x magnification range paired with a 30 mm objective for flexible observation at short to medium distances. The housing uses magnesium alloy construction for strength and thermal management, and the unit records video and photos to onboard storage while supporting Wi‑Fi and the Stream Vision 2 app. Power is supplied by a Li‑ion 18650 battery, and the unit provides an AMOLED display for image review in the field.

Key Specifications

• The sensor resolution is 384×288 pixels with a 17 µm pixel pitch.
• The thermal sensitivity (NETD) is <25 mK, providing improved thermal contrast.
• The magnification range is 2–8x for adaptable observation distances.
• The objective diameter is 30 mm to balance light gathering and compact size.
• The field of view measures 13.3° (HxV).
• The frame rate is 50 Hz for smooth thermal imaging.
• The display resolution is 640×400 pixels on an AMOLED screen.
• Built-in storage for recording is 16 GB with video/photo in .mp4/.jpg formats.
• Wireless connectivity is supported via Wi‑Fi (IEEE 802.11 b/g/n/ac) and Stream Vision 2 compatibility.
• Power is supplied by a Li‑ion 18650 battery rated at 3200 mAh with external USB‑C power input.

Compact, rugged, and feature-rich, the Axion XQ30 Pro pairs professional thermal imaging capability with a lightweight magnesium alloy body for dependable performance during observation, inspection, and outdoor use. Its onboard recording, wireless connectivity, and a high-resolution AMOLED display make it a practical choice for anyone needing reliable thermal imaging in low-light and no-light situations.
