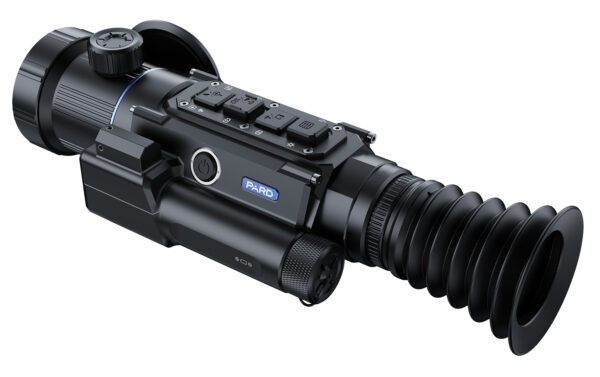

The Pard Ocelot 640 is a thermal imaging rifle scope with an integrated laser rangefinder (LRF) designed for observation and precision shooting. It uses an uncooled VOx (vanadium oxide) 640×512 sensor with a 12 μm pixel pitch and a NETD of ≤20 mK to deliver clear thermal contrast and target detail. The scope offers selectable 25 mm and 50 mm objectives and a 2–8× digital zoom range to support both wider-area scanning and extended-range observation. Built with an aluminum alloy housing and IP67 protection, the Ocelot is intended for field use in a variety of environmental conditions.
Key Specifications
- The sensor resolution is 640×512 pixels.
- The sensor type is Uncooled VOx (vanadium oxide).
- The pixel size measures 12 μm.
- The Noise Equivalent Temperature Difference rating is ≤20 mK.
- The native frame rate is 50 Hz.
- The objective is selectable 25 mm or 50 mm.
- The base optical magnification is 1.3× (25 mm) or 2.5× (50 mm).
- The digital zoom options are 2×, 4×, 6×, and 8×.
- The integrated LRF detection capability is listed as 1000 m / 1200 yds.
- The power system uses a 21700 Lithium‑ion battery with Type‑C external power support.
With its high-resolution VOx sensor, selectable optics and built-in rangefinder, the Ocelot 640 is engineered to give serious shooters and observers a reliable thermal imaging tool for precision observation and range estimation. The combination of robust construction, configurable magnification and multiple image modes makes it adaptable for long-range observation, low-light fieldwork and demanding environmental conditions.
