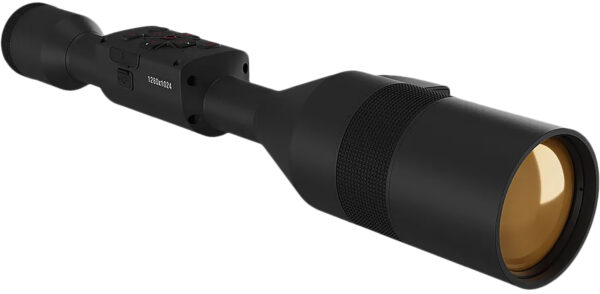

ATN Thor 5 XD LRF 4-40x Thermal Scope 1280×1024

The ATN Thor 5 XD LRF is a Gen‑5 thermal rifle scope designed for extended observation and electronic aiming tasks. It features a high‑definition 1280×1024, 12‑micron thermal sensor running at 60 fps, a smooth 4–40x zoom range, and an integrated laser rangefinder. The scope provides customizable reticles via a reticle editor, recoil‑activated video, a ballistic calculator and wired/wireless streaming and recording capability.

Key Specifications

• The magnification range is 4–40x for versatile close‑to‑long range viewing.
• The imaging sensor is 1280×1024, 12 µm at 60 fps for high‑resolution thermal imaging.
• The device runs on an ATN Gen V Quad Core processing platform.
• Video record capability is 1280 @ 60 fps for smooth onboard recording and streaming.
• The optical field of view is approximately 8.80 x 6.60°.
• Field of view at 100 yards is listed as 24–19.
• Range estimates are 4000 yd detection, 1800 yd recognition, and 720 yd identification as provided by the manufacturer.
• Power is supported by an 18650 Li‑ion battery with an indicated runtime of 10+ hrs.
• Mounting interface is a 30 mm HP QDM for 30 mm ring and QD mount compatibility.
• Reticle options include multiple patterns & colors and a reticle editor for custom reticles.

The Thor 5 XD LRF combines a high‑resolution thermal sensor, long zoom range and integrated rangefinding with modern features such as ballistic computation, RAV (recoil‑activated video), and wireless streaming. Its Gen‑5 processing and customization options make it suitable for serious users who need reliable electronic imaging and targeting tools for extended‑range observation and situational awareness.
