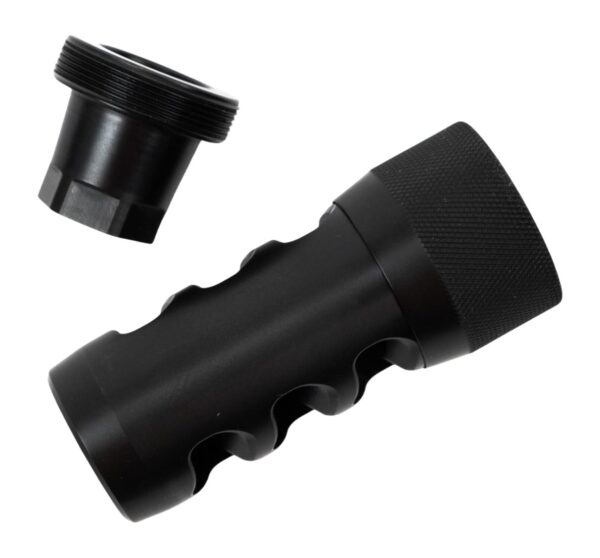

Area 419 Hellfire Muzzle Brake 223/6mm 1/2-28

The Area 419 Hellfire Self Timing Muzzle Brake is designed for 223/6mm applications and installs on barrels with 1/2-28 threads. Its self-timing collar locks the brake in place during installation so port orientation does not change when the collar is torqued. Constructed from heat-treated 17-4PH stainless steel and finished in Black Nitride, the Hellfire uses rearward-facing ports and a proprietary port geometry to reduce recoil and control muzzle rise without top porting. The design emphasizes repeatable return-to-zero after removal and reinstallation, and the brake is manufactured in NW Ohio, USA.

Key Specifications

• Compatible with calibers up to and including 0.243 inches (6mm), covering .223, 5.56 NATO, .204, .17 cal and similar cartridges.
• Threading: 1/2-28.
• Finish: Black Nitride.
• Material: Heat-treated 17-4PH stainless steel.
• Timing system: self-timing collar that requires no special timing tools.
• Return-to-zero characteristics rated as excellent for consistent reinstallation.
• Port configuration: rearward-facing ports with a proprietary design to manage muzzle rise without top porting.
• Brake dimensions: 1.0″ OD brake and 1.1″ OD collar.
• Added length: assembly adds 2.6 inches from the thread shoulder (approximately 2 inches added to overall barrel length).
• Manufacturing: produced on CNC machines in NW Ohio, USA.

Built for shooters who prioritize repeatability, controlled recoil, and straightforward installation, the Hellfire Self Timing Muzzle Brake provides a durable, factory-machined option for precision and competitive platforms chambered for 223/6mm cartridges. Its locking collar and proven port design deliver consistent orientation and measurable recoil reduction while preserving point of impact when removed and reinstalled.
