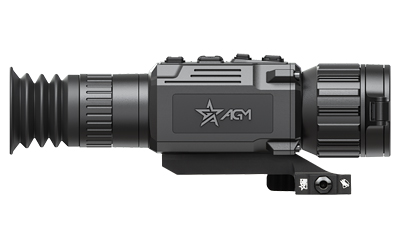

AGM Rattler V3 LRF 35-640 Thermal Scope

The AGM Rattler V3 LRF 35-640 is a compact thermal riflescope engineered for extended observation and precision engagement in low-light or no-light conditions. It pairs a 35 mm Germanium objective with a sub-15 mK thermal sensor and a 640×512, 50 Hz detector to deliver high-contrast thermal imagery. The RattlerV3 integrates a 1000 m in-lens laser rangefinder and an onboard ballistic calculator to support range estimation and holdover decisions. Designed with a removable NE-4400 rechargeable battery, shutterless NUC, and AGM Image Boost 2.0, the V3 balances performance and field-ready ergonomics.

Key Specifications

• The objective lens measures 35 mm for thermal collection.
• The onboard detector provides a 640×512, 50 Hz thermal resolution.
• The display uses a 2560×2560 high-resolution OLED screen for image presentation.
• Thermal sensitivity is specified as sub-15 mK for fine-detail detection.
• Magnification ranges from 2.5× to 20× to cover close and extended observation distances.
• A built-in laser rangefinder measures out to 1000 m and feeds data to the ballistic calculator.
• Onboard storage includes 64 GB eMMC for video and image capture.
• The power system uses a removable rechargeable NE-4400 battery with approximately 5.5 hours of runtime.
• The unit features a shutterless NUC design and AGM Image Boost 2.0 image processing.
• An American-made ADM mounting system is included for secure attachment.

Built to deliver reliable thermal performance and practical field features, the Rattler V3 LRF is suited for long-range observation, low-light surveillance, and precision shooting applications where integrated ranging and ballistic computation matter. Its combination of high-resolution imagery, in-lens rangefinding, and flexible magnification makes it a versatile optic for users who require advanced thermal capability in a compact package.
