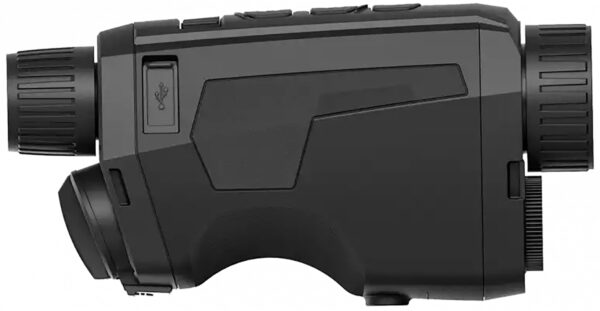

AGM Global Vision Fuzion LRF TM35-384 Thermal Monocular

The AGM Fuzion LRF TM35-384 is a handheld thermal and optical bi-spectrum monocular equipped with a 12m high sensitivity thermal detector, an ultra-low-light optical detector, and a 1024×768 OLED display. It offers selectable image modes—thermal, visible, and fusion—to adapt to varying environmental conditions. The monocular includes a built-in laser rangefinder and digital zoom options of 1x, 2x, 4x, and 8x for practical distance assessment and target inspection. Designed for field use, the unit is waterproof, uses ergonomic manual controls, and runs up to 5 hrs on a single 18650 rechargeable battery with support for external power.

Key Specifications

• Overall dimensions are 6.60″ x 3.40″ x 2.90″.
• Weight is 1.15 lbs.
• Battery life provides up to 5 hrs of operation on a single cell.
• Battery type uses a 18650 Li-ion Rechargeable cell.
• Magnification range is 3.5-28x.
• The objective lens measures 35mm.
• Detector resolution and refresh rate are 384×288, 50Hz.
• Field of view is 7.50 x 5.70 Degrees.
• Focus range is 1653 Meters.
• Operation is via manual controls.

Built for demanding observation tasks, the Fuzion LRF TM35-384 combines fusion imaging, an integrated rangefinder, and a rugged, weather-resistant design to deliver consistent detection and distance measurement in smoke, fog, rain, or low-light conditions. Its combination of thermal and visible imaging modes makes it a practical choice for patrol, search and rescue, and other professional field applications where reliable, all-weather performance is required.
